Wednesday 25 August 2010

TSmuxeR for extract streams

The TsmuxeR is a very handy tool for create avcHD, and now in Ubuntu you can use for extract the streams on mkv files. The audio file is a_aac that you need re-encode before you can create avcHD.

tsmuxergui-under-wine-in-ubuntu


TSmuxeR web site

Saturday 21 August 2010

Tip: How to make a avcHD menu without re-encoding the video files?

Update
Hi to all to stop by,
i found a solution for having to titles [videos] on one single DVD 4.7GB with a menu without encode de files in avcHD. For that you need this tools,
multiAVCHD,free
TSmuxeR,free
IMGBURN, free
Virtual CloneDrive free
and
PowerDVD not free
the last two are optional. For this test i have used two short movies that you can use at will and free from the open movie project "Elephants Dream" and "Big Buck Bunny" and on the end of this tip i will provide the file that is ready to burn to a dvd
a avcHD with the size of 1.77Gb, can be played on PS3 or Blu-Ray, is bigger but you will see the end resault and quality,
ok i have some screenshots to help a bit and this is not for explain the settings of any this programs that i will be using on this tip so for start go to "Elephants Dream" and this other "Big Buck Bunny" and download  the short movies if you want use this two or use any other mkv files if you wich for this tip, ok  open TSmuxeR load the first file elephant dreams.mkv add button  or drag & drop and save it a m2ts file do the
same for the big buck bunny.mkv, close the program

and open the multiAVCHD use add video files tab or simple drag & drop

highlight the 1st file Elephant dream.m2ts and click properties tab this will bring a new window

here you can add a wallpaper or a front dvd  by clicking on the empty space of poster image, after playback change to go to menu and click ok. On the author tab select create top menu
and slide menu,

this is my preferences but you can change to a different stile see " http://multiavchd.deanbg.com/ " click on start and choose blu-ray

and this will take more or less 10 minutes, on my 3.2Ghz 4 cores  but maybe will take more or less on your machine. After the process finish close the program and open the IMGBURN

and hit create image file from files/folders look for the folder that you create with muitiAVCHD
load the two BMVD and CERTIFICAT

give it a name and location and press start to build the iso image on 2.50 UDF.






Now this optional but to be frank i think is the best way to check this iso file before you burn it, because if there are mistakes you can delete and start over,
load Virtual CloneDrive mount the iso  and play it on powerdvd and if you are happy with the results then open again IMGBURN and burn it to a dvd, i hope that you found this tip useful.
If is there something that i should make different tell me on the comments and i will give you credit for it, thanks.

Ps: for a full dvd 4.7GB with 2 titles yours files should be 2GB each more or less, because combine the two and the menu will get about 4.25GB and believe or not this is the size of a single side dvd.

Thanks to:
Blender
http://orange.blender.org/
http://www.bigbuckbunny.org/
http://multiavchd.deanbg.com/
http://www.smlabs.net/tsmuxer_en.html
http://www.imgburn.com/
http://www.slysoft.com/en/virtual-clonedrive.html

My end file:
this is a iso file 2.5 udf ready to be burn to a dvd or mount it in virtual, but if you mount it in virtual and not have PowerDVD or WinDVD you not will see the menu.

Download single file use JDownloader
http://www.megaupload.com/?d=XJVF3M94

Split files rar no pass
http://www.megaupload.com/?d=NQC68NO2
http://www.megaupload.com/?d=AKMZSY5O
http://www.megaupload.com/?d=1UZBSXYV
http://www.megaupload.com/?d=QKKS0RI2
http://www.megaupload.com/?d=RR54EN03
http://www.megaupload.com/?d=6HJ5P6XJ
http://www.megaupload.com/?d=00SWUPH2
http://www.megaupload.com/?d=1PE9G7WU
http://www.megaupload.com/?d=WH3ST0FV
http://www.megaupload.com/?d=0VLOML3R
http://www.megaupload.com/?d=D98RPUWD
http://www.megaupload.com/?d=GH8KGGB3

Torrent:
http://www.kickasstorrents.com/the-open-movie-project-t4363441.html

Wednesday 18 August 2010

TSmuxerGUI under wine in Ubuntu

Tsmuxer is a great tool for creat Blu-Ray or AVCHD discs it is easy to install under wine, download from the oner website and move to c:drive using Applications/wine/Browse C:drice
make it executable
you can do this by right click on the file and clicking on properties, and then permissions.
To add a jumper to the panel like this

with a custom icon right click on the panel and "add to panel"
click "custom application launcher"
the only thing that you need to do is point to the program by clicking browse and on the new window write .wine/drive_c/ ,select the TSmuxerGui and press enter, for the icon i use one that looks similar to the default by clicking on the small icon and point to the new one,

at this point you have a jumper "launcher" for tsmuxer ready for make yours Blu-ray,AVCHD disks, or even demux mkv files but that is for another day.
http://www.smlabs.net/tsmuxer_en.html
for the icon that i used on this get from the original owner
http://ivofarcry.deviantart.com/art/Clover-Icon-83107678

Sunday 15 August 2010

Arista transcoder

Arista Transcoder is a very nice riper and transcoder for small devices like ipod/iphone/ipad, nokia, sony psp/playstation3, etc..

and is a good looking and fast very easy to use but only for linux users.
http://www.transcoder.org/

Wednesday 11 August 2010

New Home

The last build i made i start from some used parts like the pc case but this case looks unsafe for my baby, so i buy a new pc case a cool master elite and i will show the parts used on this build:

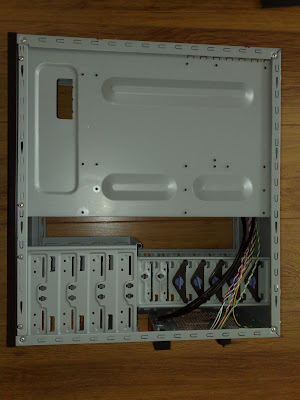

the empty box back fan front info cables
the other side
the front of the case
and the back
a extra fan 120mm for the front, a used antec 3 speed manual to bring air inside
the psu cit 550
the graphics sapphire ati 5750 with 1 gb memory crossfire
http://en.wikipedia.org/wiki/ATI_CrossFire
hdd 1tb seagate barrecuda
asus amd3 socket with on board gpu ati, processor amd phenom II 955 4 core 3.2ghz, memory ocz 1600 2x2 gb, hdmi and hd 7.1 sound
memory ocz 4 gb
the back of the motherboard
gpu nos onboard graphics from ati
amd phenom and cooling fan
psu and motherboard in place
the graphics in place
hdd and front fan in place
blu ray and dvd combo the 2sd is used
blu ray and dvd combo in place
all connected
the final look.
Os windows 7 64 bit
Web cam microsoft HD
wireless keyboard and mouse
internet usb adapter
hdmi cable.

Tuesday 3 August 2010

Mkvextract command line in Ubuntu.

This post is to help me, because i forget the things very easy, so for me and maybe for you this is very easy.

Open applications and go to Ubuntu software centre search box write mkv
and install "command line tools to create and work with Matroska media files". Assuming that you have the "mkvtoolnix" on your system " http://www.bunkus.org/videotools/mkvtoolnix/downloads.html "
How to extract the files from mkv?
All of my files go to my Downloads folder so open Terminal and use de command cd " change directory " exp: cd Downloads
Remember folders have up and lower cases letters, now that you have used de "cd" change directory command this is the easy part the name and the id of the tracks for the extraction, for the id or the tracks use mkvinfo
The command line is
mkvextract tracks myfile.mkv 3:myfile.S_TEXT/UTF8
This is a example for a 3 tracks mkv, if you wanted extract the video use the codec id for that track
command line
mkvextract tracks myfile.mkv 1:myfile.V_MPEG4/ISO/AVC

This help me to remember maybe help you to.

Ubuntu
mkvtoolnix
